Rugged Handheld Multi-Biometric Terminal
Industrial and Humanized Hardware Design
Octa-Core Processor & Large Memory
Superior Data Communication and Security Guarantee
Multi-Biometric and Versatile Optional Functions
Contact us

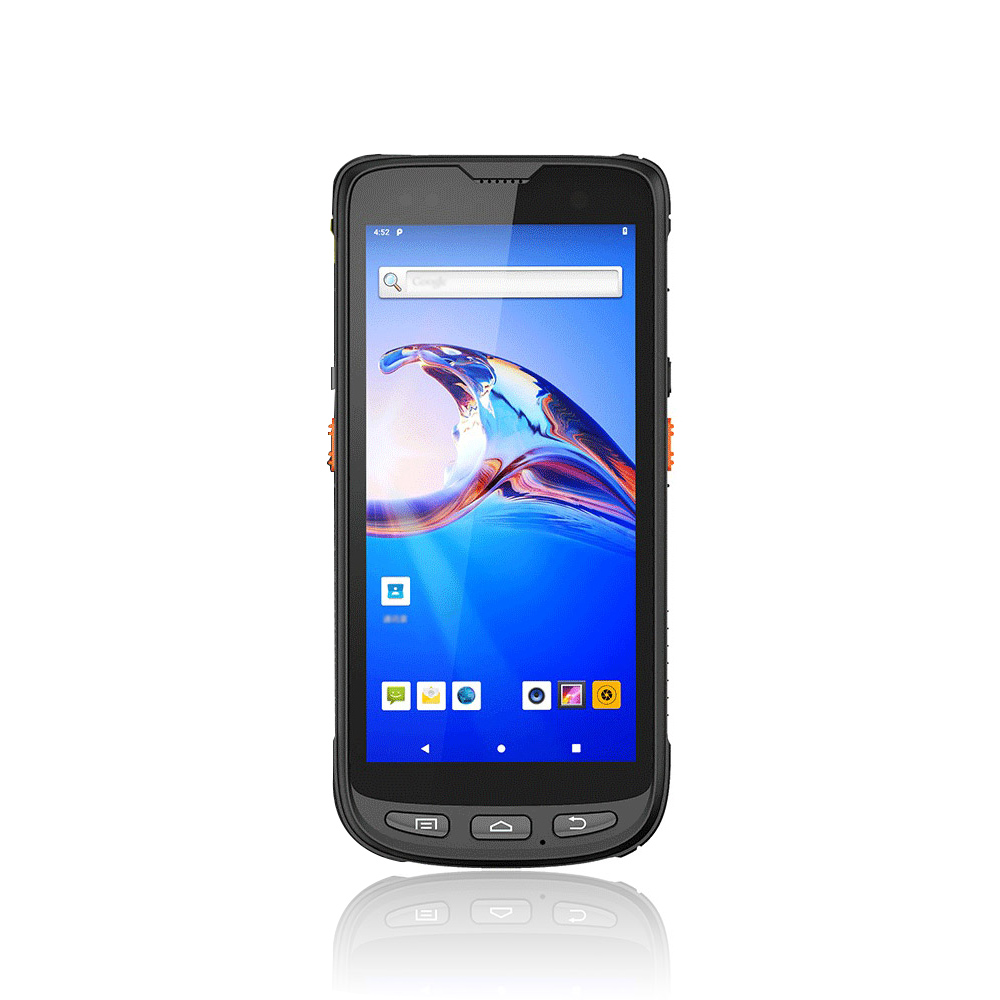

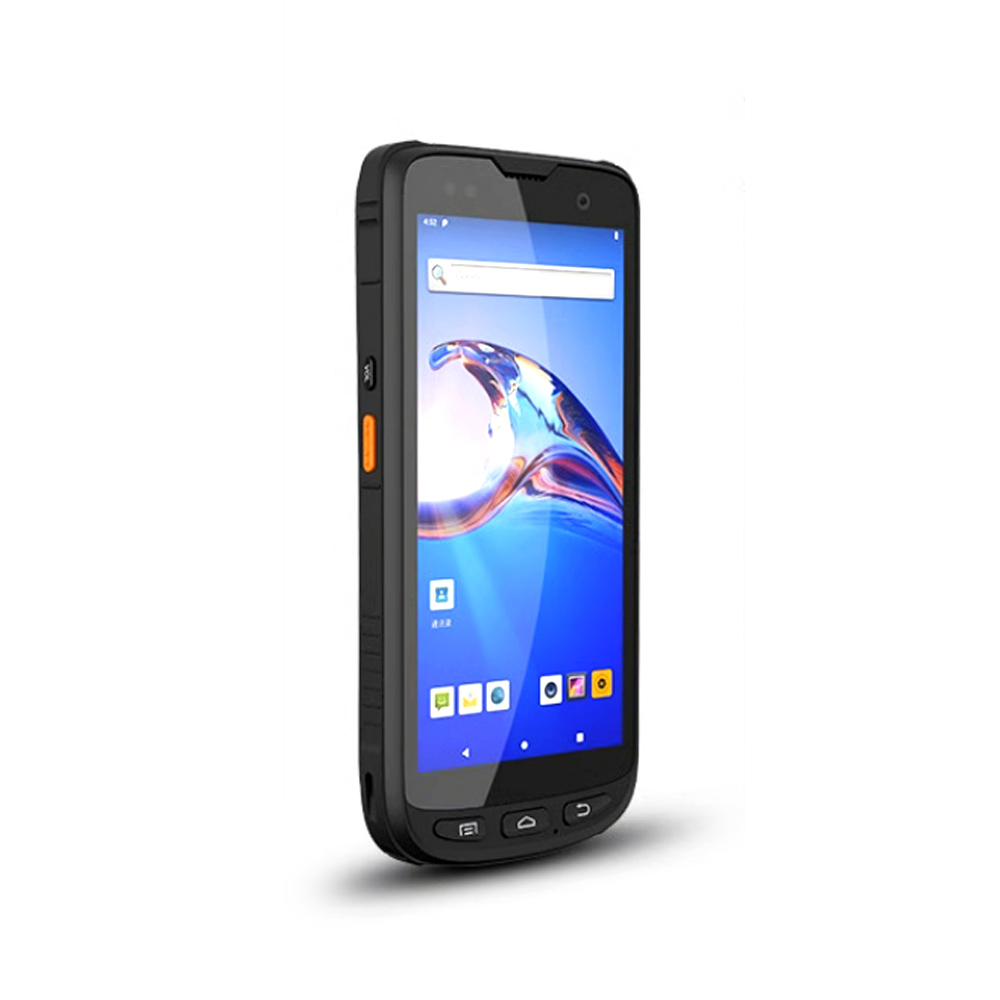

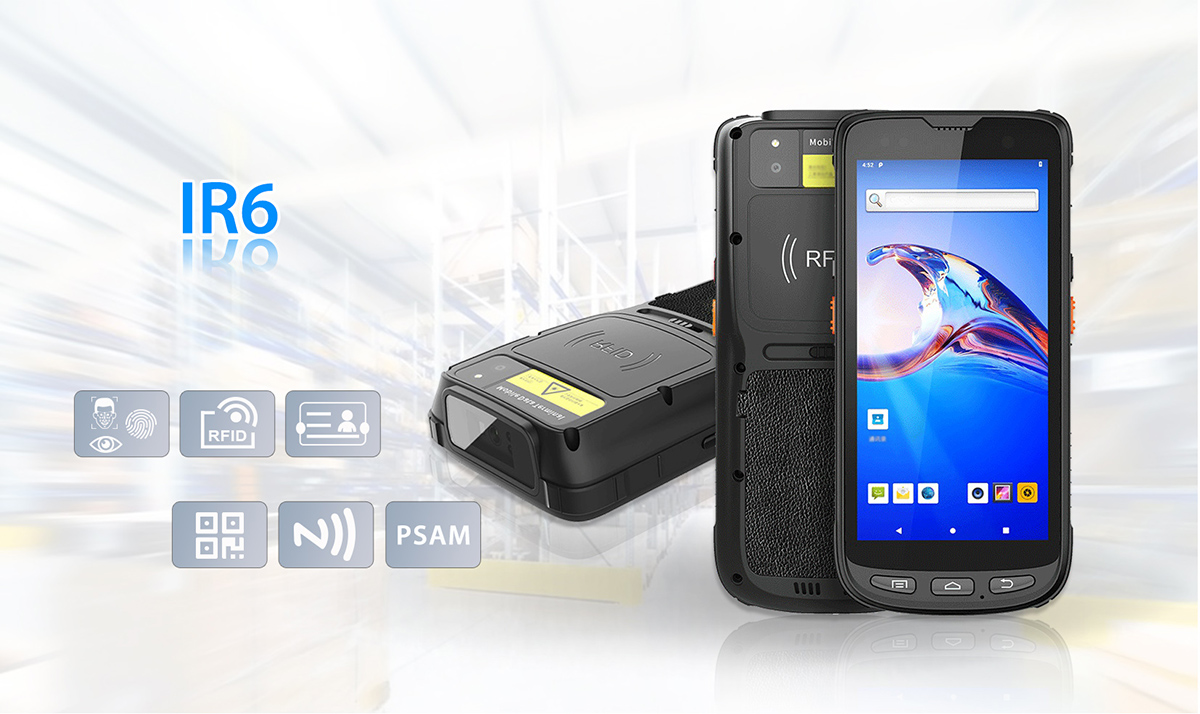

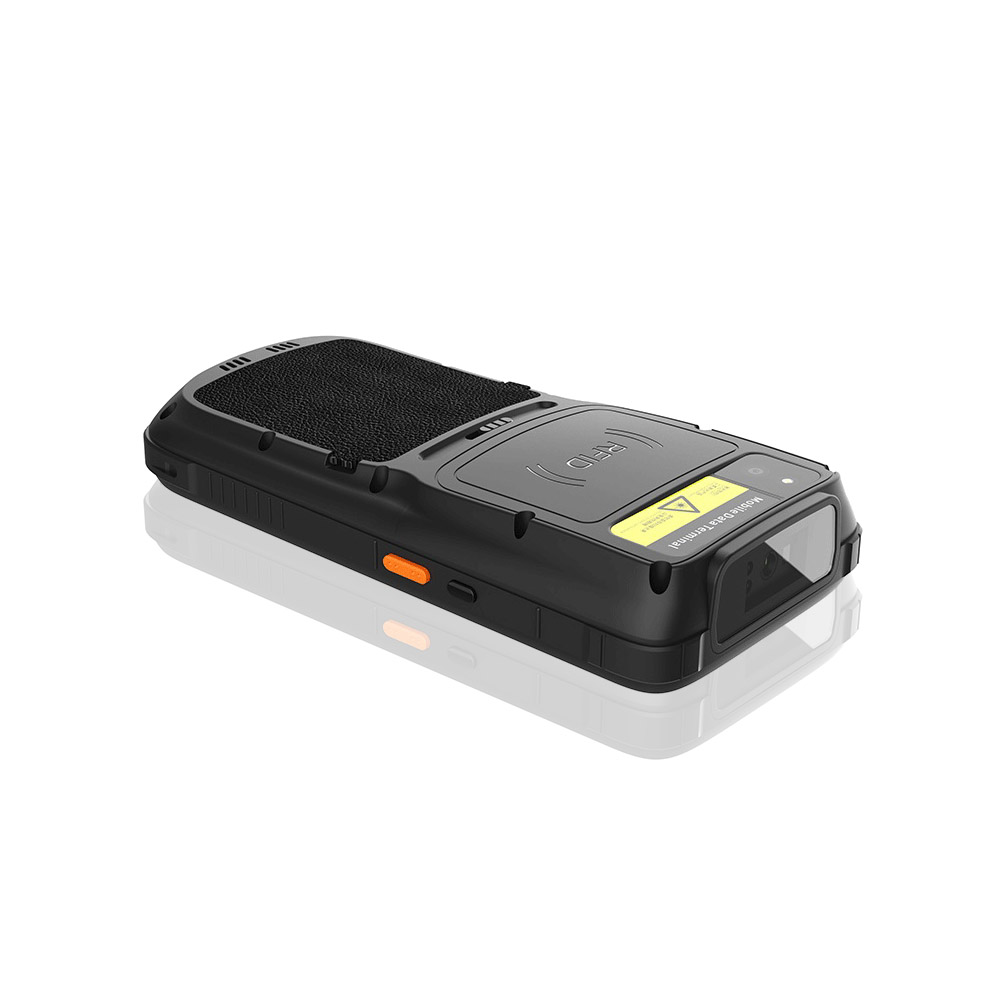

IR6
♦ Android 10.0 OS with memory of 4GB RAM/64GB ROM
♦ Industrial & humanized keypad design and tough 5.5 inch touch screen together
♦ with high resolution of 720*1440 display
♦ 4G & WIFI network and highly secured Android 10.0 system provide the high speed data communication and perfect security guarantee

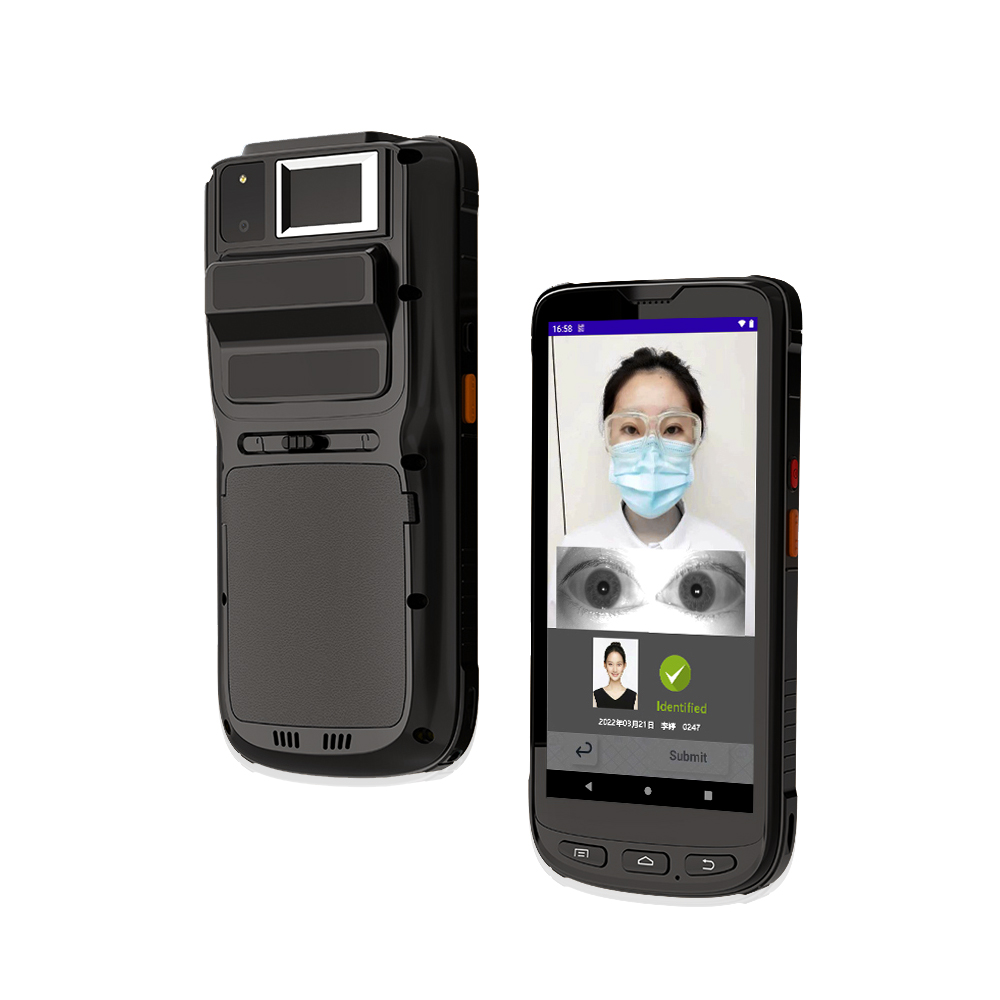

♦ Iris image capture and recognition for national ID applications, face recognition, 1D/2D barcode reading,
♦ NFC, optional functions: fingerprint image capture and recognition, passport MRZ reading, ANPR
|
CPU |
Cortex-A53 Octa-core 2.0GHZ |
|
RAM+ROM |
4GB+64GB |
|
Expansion |
Supports up to 256 GB Micro SD card |
|
Operating System |
Android 10.0 |
|
WLAN |
IEEE802.11 a/b/g/n/ac, 2.4 G/5 G dual-band, internal antenna |
|
WWAN |
4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 3G:WCDMA( 850/1900/2100MHz) 2G:GSM/GPRS/Edge |
|
Bluetooth |
Bluetooth v2.1+EDR, 3.0+HS,v4.2+HS |
|
GNSS |
GPS/AGPS, GLONASS, BeiDou; internal antenna |
|
Dimensions |
166×79×27±2mm (not including 7mm protruding height of iris modu |
|
Weight |
about 300g |
|
Display |
Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight |
|
Touch Panel |
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
|
Power |
Main battery: Rechargeable li-ion polymer, 3.8V, 4800mAh Standby: over 360 hours with communication off Continuous use: over 14 hours (depending on user environment) Charging time: less than 3 hours,support 5V2A/PE2.0 16W fast charging |
|
Expansion Slot |
1 slot for SIM card, 1 slot for TF card |
|
Interfaces |
USB 2.0 Type-C, OTG, TypeC headphones supported |
|
Audio |
Speaker, 2 microphones |
|
Keypad |
3 front keys,(power key, scan keys, multifunctional key at the left and right sides of the phone |
|
Sensors |
Gravity sensor, light sensor, proximity sensor, vibration motor |
|
SDK |
Software Development Kit |
|
Language |
Java |
|
Tool |
Eclipse / Android Studio |
|
Operating Temp. |
-4℉ to 122℉ / -20℃ ～ +50℃ |
|
Storage Temp. |
-4℉ to 158℉ / -20℃ ～ +70℃ |
|
Humidity |
5% RH - 95% RH non condensing |
|
Drop Specification |
5ft./1.5 m drop to concrete across the operating temperature range |
|
Tumble Specification |
1000 x 0.5m / 1.64 ft. falls at room temperature |
|
Sealing |
IP65 per IEC sealing specifications |
|
ESD |
±15KV air discharge，±8KV conductive discharge |
|
Sensor |
TCS1 Capacitive |
|
Sensing Area (mm) |
12.8 × 18.0; |
|
Resolution (dpi) |
508 dpi, 8-bit greylevel |
|
Certifications |
FIPS 201, STQC |
|
Format Extraction |
ISO 19794, WSQ, ANSI 378, JPEG2000 |
|
Fake Finger Detection |
Support by SDK |
|
Security |
AES, DES key encryption of the host communication channel |
|
Rear Camera |
13 MP Autofocus with flash |
|
Front Camera |
5M MP Autofocus |
|
Frequency |
13.56 MHz |
|
Protocol |
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
|
Chips |
M1 card (S50, S70), CPU card, NFC tags, etc. |
|
Range |
5-10 cm |
|
1D Linear Scanner |
Zebra SE965 / Honeywell N4313 |
|
1D Symbologies |
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
|
2D Imager Scanner |
Zebra: SE4710 / SE2707; Honeywell: N6603 |
|
2D Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal,Dutch Postal (KIX), etc. |
|
Rate |
< 150 ms |
|
Range |
30-40 cm |
|
FAR |
1/10000000 |
|
Protocol |
ISO/IEC 19794-6，GB/T 20979-2007 |
|
Standard |
AC Adaptor, USB Cable, |
|
Optional |
Carrying case; Cradle |
