GT-855P32C-S8-MI-S-HL

5 MP Smart Hybrid Light Fixed Lens Bullet IP Camera

Bio Sense Series

Bio Sense series smart hybrid light IP cameras are the front-end cameras of intelligent video surveillance solution released based on the Deep-Learning algorithm and Computer Vision technology.
By using advanced and powerful CPU, coupled with the embedded intelligent classification algorithm, Bio Sense series smart hybrid light IP cameras can accurately detect and recognize 3 key types of targets: human, vehicles and objects. Meanwhile, they can effectively filter out other useless objects to avoid false alarms, such as animals, leaves, shadows, and rain, etc.
Bio Sense series smart hybrid light IP cameras greatly improve the efficiency and safety of the entire video surveillance system, which can be widely used in different scenarios such as smart school, office, industrial park, community, public security, etc.

Product detail

♦ 1/3” 4 MP CMOS Sensor
♦ H.265 Triple streams encoding
♦ High-quality optical lens: 3.6 mm
♦ 40 m IR / 30 m white light effective range
♦ Smart hybrid light (white light & IR integrated light)
♦ 120 dB True WDR
♦ Built-in microphone
♦ Embedded intelligent classification algorithm based on computer vision technology
♦ Multiple intelligent video analytic features supported
♦ Support multiple browsers web client
♦ Remote viewing with mobile application compatible with ZKBio CVSecurity
♦ Lightning protection up to 6 kV
♦ Metal casing design and reached IP67 protection rating standard for waterproof and dust proof

Smart Hybrid Light

Bio Sense series smart hybrid light IP cameras effectively improve the security at night by integrating latest Smart Hybrid Light design and intelligent perimeter protection functions. The built-in hybrid integrated optical coupler and intelligent switching logic can greatly reduce unnecessary light pollution in the environment, which is more green and energy-saving.
When no human or vehicle triggers the alarm event, this series of IP cameras operate in IR light mode. Once the alarm is triggered, the cameras will automatically switch to white light to capture color images and videos, and effectively deter intruders. Therefore, the design of smart hybrid light brings more user-friendly and flexible functions to meet different needs in various scenarios.

H.265 HEVC

H.265 is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D / 3D noise reduction, etc. Delivering high quality video with up to 70% lower bandwidth.

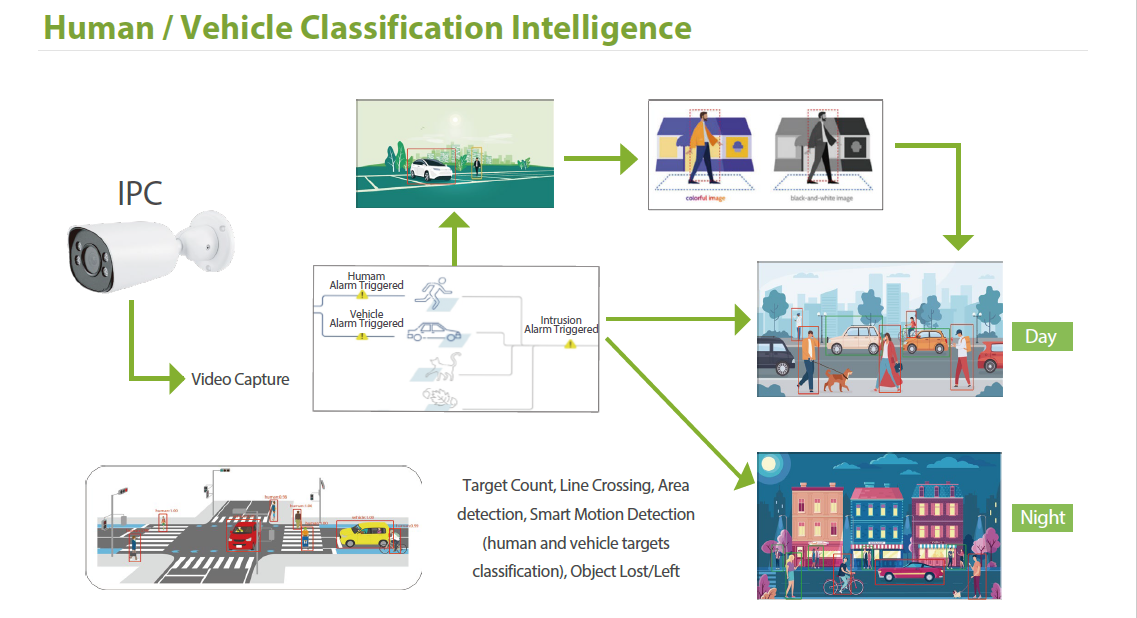

IVA (Intelligent Video Analytics)

Bio Sense series smart hybrid light IP cameras support multiple intelligent video analytic functions: Line Crossing, Area Detection, and Smart Motion Detection, which are based on human and vehicle targets classification.

True WDR

Powered powerful ISP algorithm and high-quality sensor, Bio Sense series smart hybrid light IP cameras are built-in with true WDR feature, which can present excellent picture images in extreme contrast lighting environments.

ANR

While the connection lost between IPC and NVR, the video will be saved in SD card. The saved video will be auto replenished to NVR when network recovers to avoid any video lost.

Protection

With precise mechanical and rugged metal casing design, the Bio Sense Series IP Cameras with IP67 water proof and dust resistant protection rating, and support to work at variety of harsh outdoor environments such as a wide temperature range from -30 °C to +60 °C, etc.

Model

GT-855P32C-S8-MI-S-HL

Image Sensor

1/2.7” 5 MP CMOS Sensor

Max.Resolution

2592 (H) × 1944 (V)

ROM

128MB

RAM

256MB

Scanning System

Progressive Scan

Electronic Shutter Speed

1/5 s to1/100,000 s

Min. Illumination

0.001 Lux @ F1.3 (AGC on, Color) 0 lux (IR on, B & W)

S/N Ratio

>52dB

IR Range

40 m

White Light Range

30 m

Illuminator On/O Control

Auto/Manual

Illuminator Number

4 × IR / White Light integrated LED

Smart IR

Support

Angle Adjustment for Installation

Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

TV System

PAL/NTSC

Image Settings

Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, Adjustable by platform software or web browser

Software Reset Default

Support

General Function

Heartbeat, Mirror, Privacy mask, Log, Password reset

Lens Type

Fixed Lens

Lens Mount

M12

Mount Type

Board-in

Focal Length

3.6mm

Max. Aperture

F1.3

Field of View

FOV: 87°, Horizontal: 88°, Vertical: 45°, Diagonal:105°

Iris Control Type

Fixed

Close Focus Distance

1.5m

DORI Distance

Lens	Detect	Observe	Recognize	Identify
3.6mm	50 m	19.2 m	10 m	4.3 m

Video Compression

H.265 / H.264

Resolution

5 MP (2592 × 1944) / 4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) /
720 P (1280 × 720)

Max Video Frame Rate

Main stream

50 Hz (PAL): 25 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz (NTSC): 30 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub stream

50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360)

60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360)

Third stream

N/A

Video Stream Capability

Dual streams

Bit Rate Control

CBR / VBR

Video Bit Rate

H.264: 896 Kbps to 8 Mbps H.265: 1024 Kbps to 8 Mbps

Day/Night

Auto (ICR) / Color / B & W

BLC

Support

HLC

Support

WDR

120 dB True WDR

Scene Self-adaptation

Support

White Balance

Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp

Gain Control

Low, Mid low, Mid, Mid high, High

Noise Reduction

2D / 3D NR

Motion Detection

Smart / Ordinary (4 areas)

Region of Interest (ROI)

Support (4 areas, Level 1~6)

Mirror

Support

Image Rotation

0°/90°/180°/270°/Horizontal/Vertical

Privacy Masking

4 areas

Corridor Mode

Support

Digital Zoom

Support

Built-in MIC

Support

Audio Compression

G.711ulaw

Environment Noise Filtering

Support

Audio Sampling Rate

8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Audio Bit Rate

64 Kbps (G.711ulaw)

IVA (Perimeter Protection)

Target Count, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection
(human and vehicle targets classification)

Intelligent Search

Support fast retrieval by human and vehicle targets classification

Intelligent Video

Support fast retrieval by human and vehicle targets classification, playback and backup

Basic Alarm Event

Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

Smart Alarm Event

Target Count, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection
(human and vehicle targets classification)

Alarm Linkage Actions

Notify surveillance center, trigger recording, trigger capture, send email

Simultaneous Live View

Up to 15 channels

Network

1 RJ45 10 M/100 M self-adaptive Ethernet port

SDK and API

Support SDK, API and ONVIF

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Account lockout; Securitylogs; lP filtering; Trusted boot; Trusted execution; Trusted upgrade; Password protection; Complicated password; Basic and digest authentication for HTTP/HTTPS, TLS; IP address filter; Security Audit Log

Protocol

TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket

Interoperability

ONVIF Profile S/T/G

User/Host

Up to 256 users can be added. 3 user levels: Admin, Operator and Guest

Network Storage

FTP

Web Browser

IE / Edge /Firefox / Chrome / Safari

Management Software

UAccess Master
